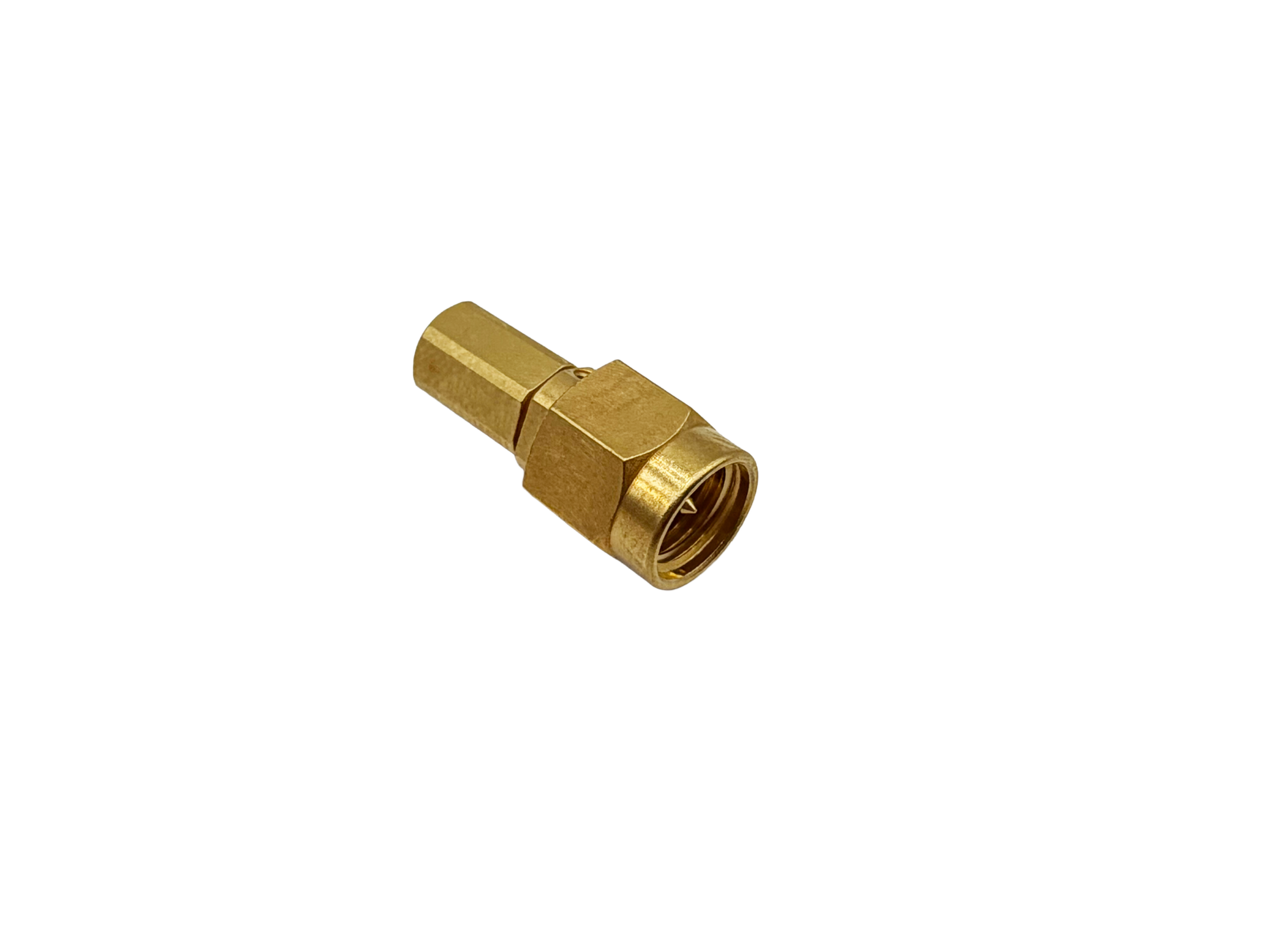

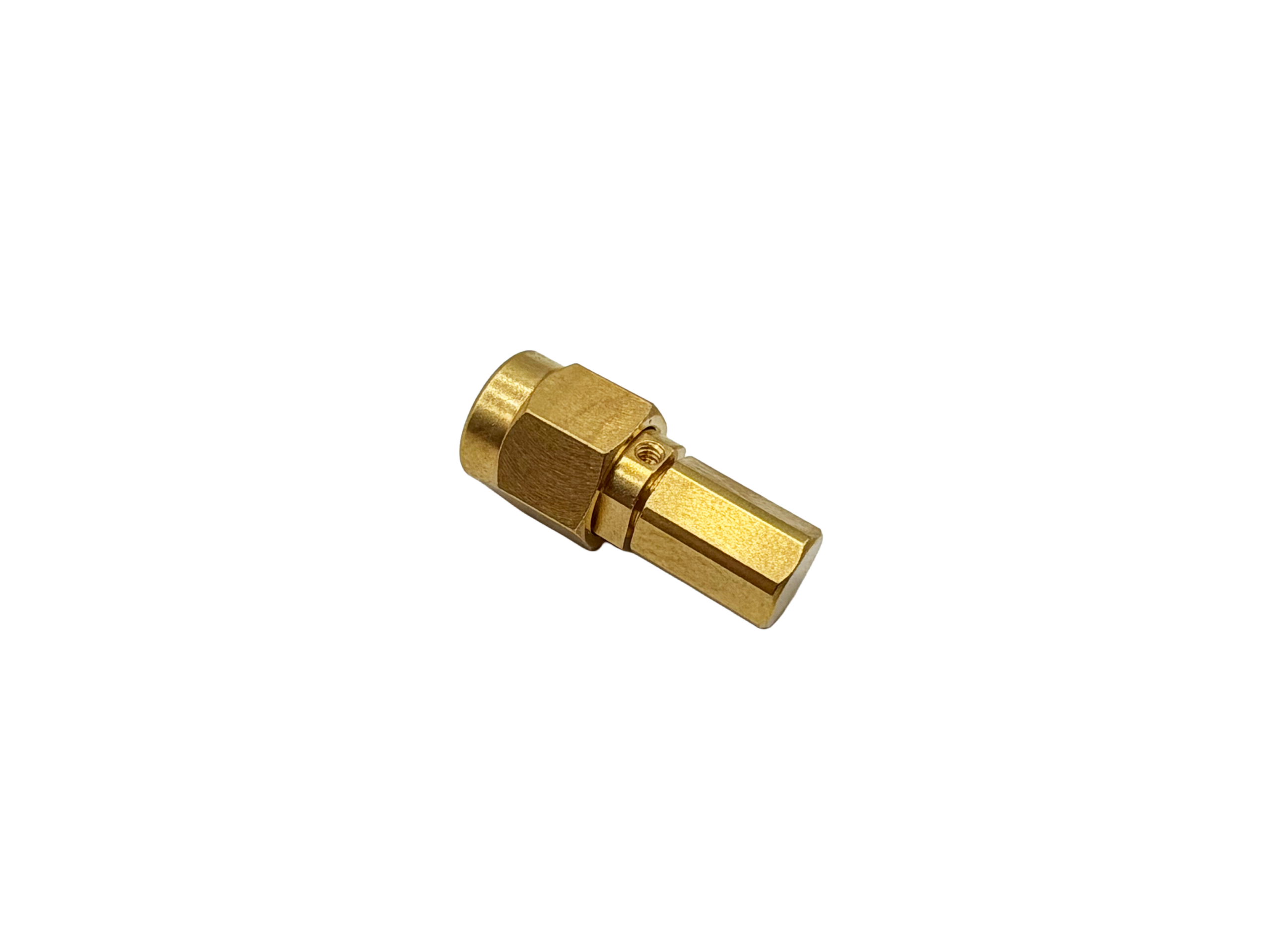

QMC-CRYOTERM-26M

Specifications:
  • Non-Magnetic Cryogenic Termination 50 Ohm Load
  • Frequency: DC to 26 GHz
  • Non-superconducting NiCr on Non-Mag Brass
  • Silver Epoxy bonded
  • Return Loss: 20 dB min to 18 GHz
  • Return Loss: 15 dB min to 26 GHz
  • Max Power Handling: 100mW
  • Connector: SMA Male
  • Material: Non-Magnetic Brass
  • Finish: Gold Plated
