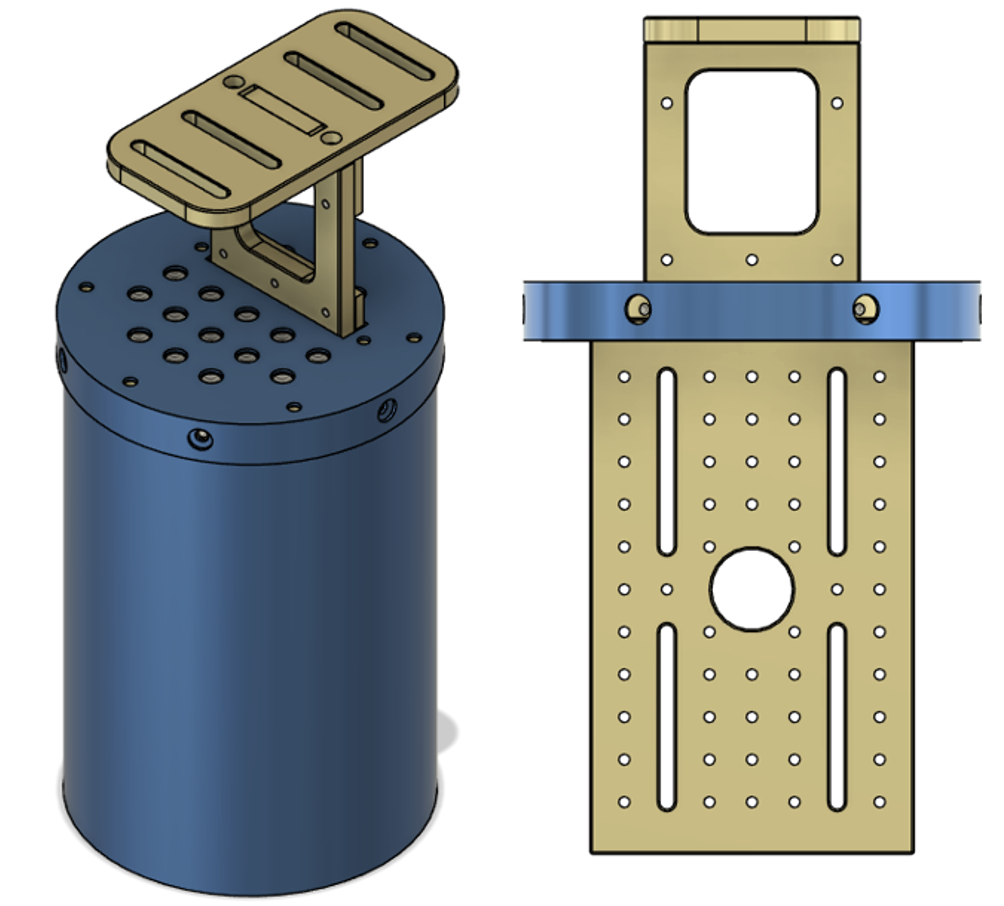

QMC-CRYOBRD-02-offset

Features:
    • Vertical Breadboard offset 12.7 mm from center to provide more space to facilitate mounting of larger components.
    • cryogenic μ-metal Amuneal high nickel content A4K proprietary alloy that yields increasing permeabilities with decreasing temperature
    • 3.8 “ ID OFHC copper infrared shield
      • Breadboard sample mounting system is designed to mount to the mixing chamber flange of dilution refrigerators.
      • Breadboard material OFHC copper with hard durable gold plating with thickness of 30 microinches.
      • Breadboard consists of 52X M3 threaded holes, and 4x M3 screw clearance slots for flexibility in mounting samples.
      • 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI) into sample measurement space. Feed-thrus can be removed to install QMC bulkhead IR filters. (feed-thrus come with SMA caps to prevent RF leakage into the infrared can through the SMA feedthrus)
      • Light tight sample space shielding with two shielding options
      • Shorter Neck for customers with more space constraints.

      Option 2:

      • cryogenic μ-metal Amuneal high nickel content A4K proprietary alloy that yields increasing permeabilities with decreasing temperature
      • 3.8 “ ID OFHC copper infrared shield
      • 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI)
      • Does NOT come with optional coating of the inside of the copper infrared shield with Stycast/SiC absorber. See part number QMC-CRYOBRD-02SiC.
