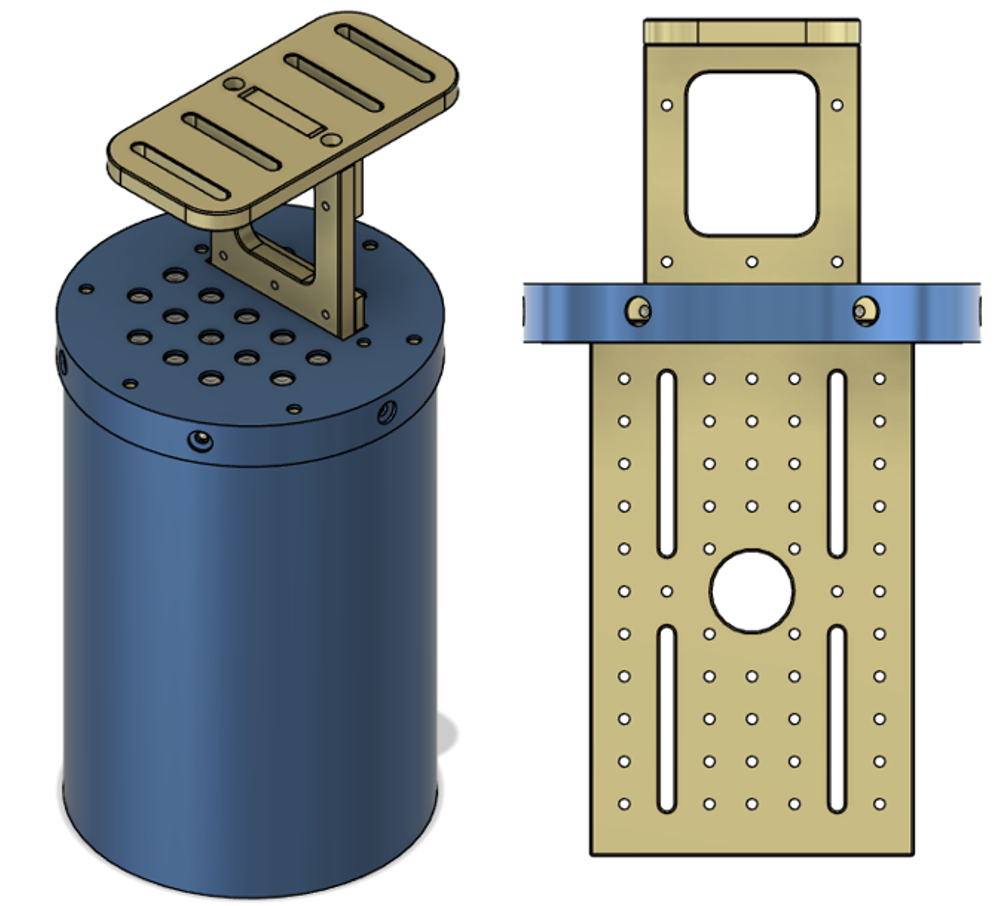

QMC-CRYOBRD-01SiC-offset
-
- Breadboard sample mounting system is designed to mount to the mixing chamber flange of dilution refrigerators.
- Vertical Breadboard offset 12.7 mm from center to provide more space to facilitate mounting of larger components.
- Breadboard material OFHC copper with hard durable gold plating with thickness of 30 microinches.
- Breadboard consists of 52X M3 threaded holes, and 4x M3 screw clearance slots for flexibility in mounting samples.
- 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI) into sample measurement space. Feed-thrus can be removed to install QMC bulkhead IR filters. (feed-thrus come with SMA caps to prevent RF leakage into the infrared can through the SMA feedthrus)
- Light tight sample space shielding with two shielding options
- Shorter Neck for customers with more space constraints.
- Option 1:
- cryogenic μ-metal Amuneal high nickel content A4K proprietary alloy that yields increasing permeabilities with decreasing temperature
- 6061 alloy Aluminum superconducting shield
- 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI)
- 3.375” ID OFHC copper infrared shield
- Does come with optional coating of the inside of the copper infrared shield with Stycast/SiC absorber.
