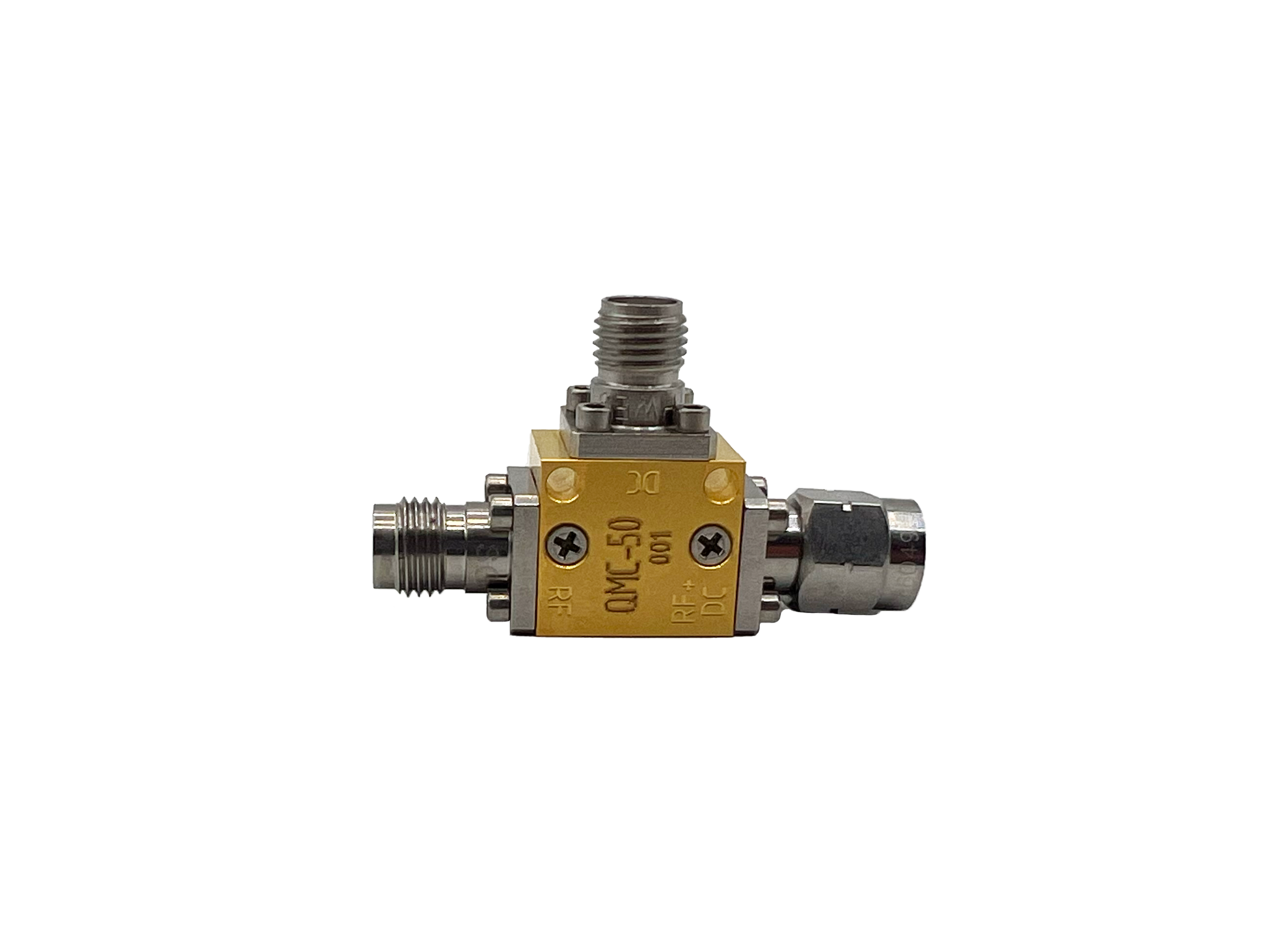

QMC-CRYOTEE-DC50

Specifications:
  • Parameter Specification Notes
    Frequency 0.2 to 50 GHz
    Insertion Loss 0.75 dB From 0.2 to 18 GHz   (Cold)
    1.5 dB From 18 to 50 GHz
    Return loss -20 dB From 0.2 to 26 GHz
    -15 dB From 26 to 50 GHz
    RF Connectors 2.4mm RF (F) and DC+RF (M)
    DC Connector SMA DC (F)
    Housing Material OFHC Copper / Gold Plated
    Max Voltage 35 V
    Max Current 225 mA
