QMC-CRYOBRD-04SiC

Features:

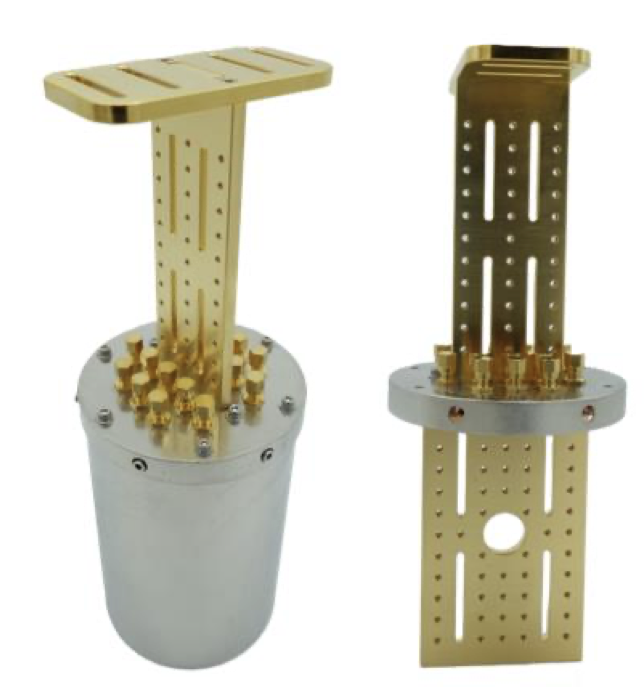

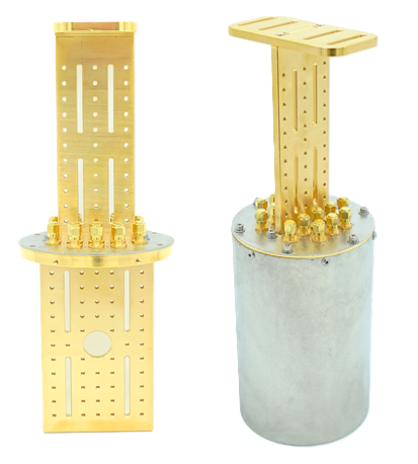

    • Breadboard sample mounting system is designed to mount to the mixing chamber flange of dilution refrigerators.
    • Breadboard material OFHC copper with hard durable gold plating with thickness of 30 microinches.
    • Breadboard consists of 52X M3 threaded holes, and 4x M3 screw clearance slots for flexibility in mounting samples.
    • 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI) into sample measurement space. Feed-thrus can be removed to install QMC bulkhead IR filters. (feed-thrus come with SMA caps to prevent RF leakage into the infrared can through the SMA feedthrus)
    • Light tight sample space shielding with two shielding options
    • Longer Neck for mounting components/cables, more usable space.
    • Option 2:
    • cryogenic μ-metal Amuneal high nickel content A4K proprietary alloy that yields increasing permeabilities with decreasing temperature
    • 3.8 “ ID OFHC copper infrared shield
    • 6X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI)
    • Comes with optional coating of the inside of the copper infrared shield with Stycast/SiC absorber
