QMC-CRYOBRD-04-offset

Features:

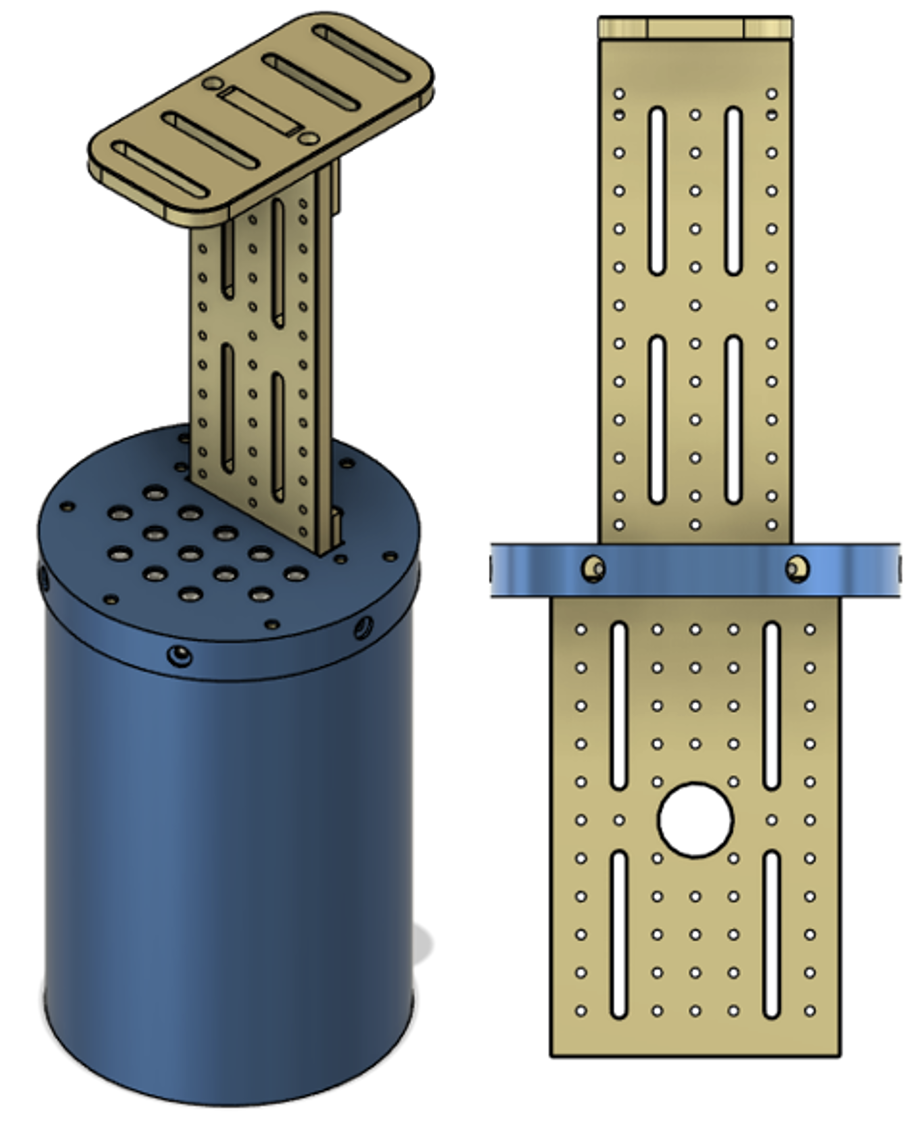

    • Breadboard sample mounting system is designed to mount to the mixing chamber flange of dilution refrigerators.
    • Vertical Breadboard offset 12.7 mm from center to provide more space to facilitate mounting of larger components.
    • Breadboard material OFHC copper with hard durable gold plating with thickness of 30 microinches.
    • Breadboard consists of 52X M3 threaded holes, and 4x M3 screw clearance slots for flexibility in mounting samples.
    • 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI) into sample measurement space. Feed-thrus can be removed to install QMC bulkhead IR filters. (feed-thrus come with SMA caps to prevent RF leakage into the infrared can through the SMA feedthrus)
    • Light tight sample space shielding with two shielding options
    • Longer Neck for mounting components/cables, more usable space.
