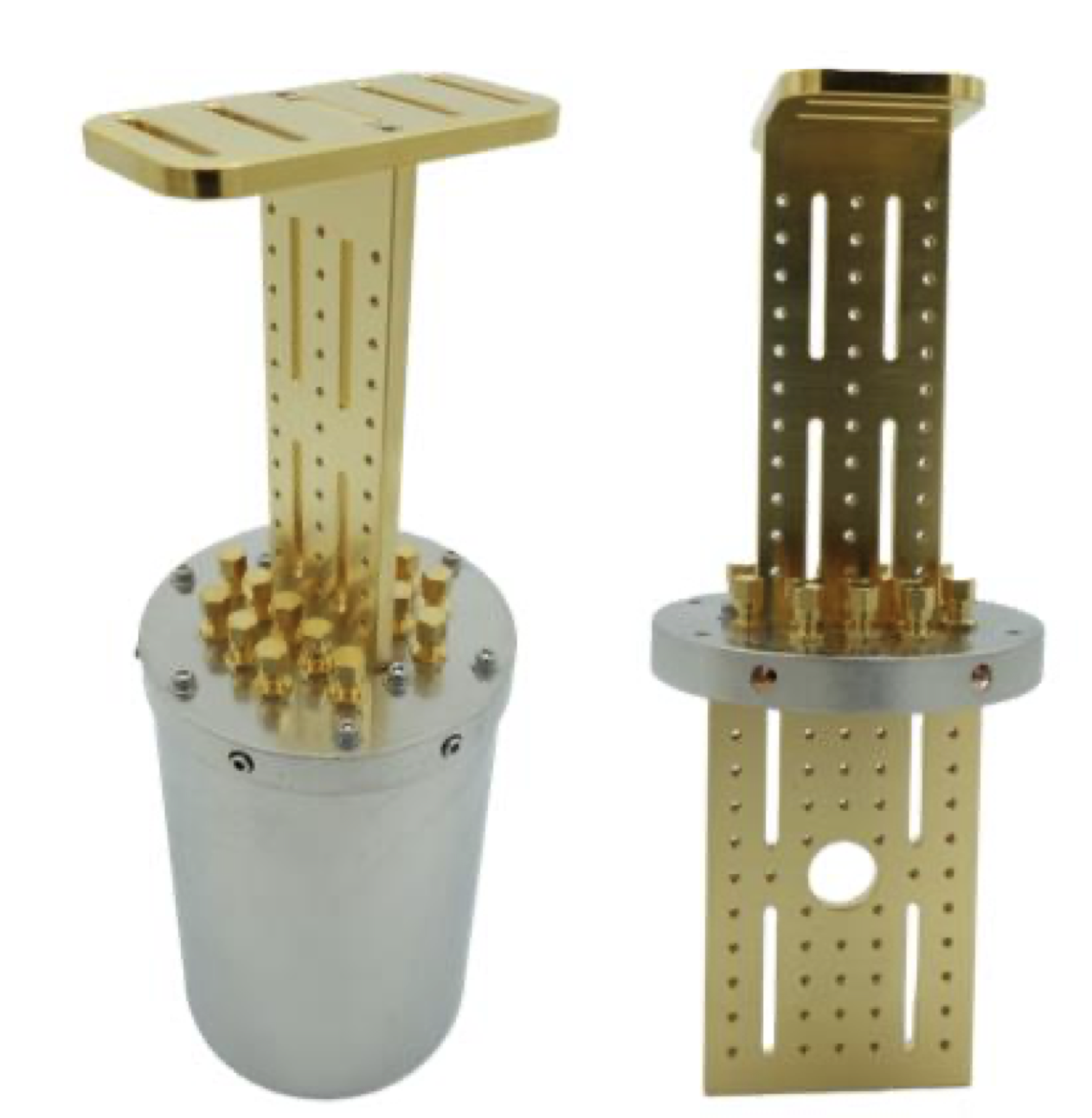

QMC-CRYOBRD-03
-
- Breadboard sample mounting system is designed to mount to the mixing chamber flange of dilution refrigerators.
- Breadboard material OFHC copper with hard durable gold plating with thickness of 30 microinches.
- Breadboard consists of 52X M3 threaded holes, and 4x M3 screw clearance slots for flexibility in mounting samples.
- 16X non-magnetic SMA feed-thru (QMC-CRYOCON-BLKMAFTI) into sample measurement space. Feed-thrus can be removed to install QMC bulkhead IR filters. (feed-thrus come with SMA caps to prevent RF leakage into the infrared can through the SMA feedthrus)
- Light tight sample space shielding with two shielding options
- Longer Neck for mounting components/cables, more usable space.
