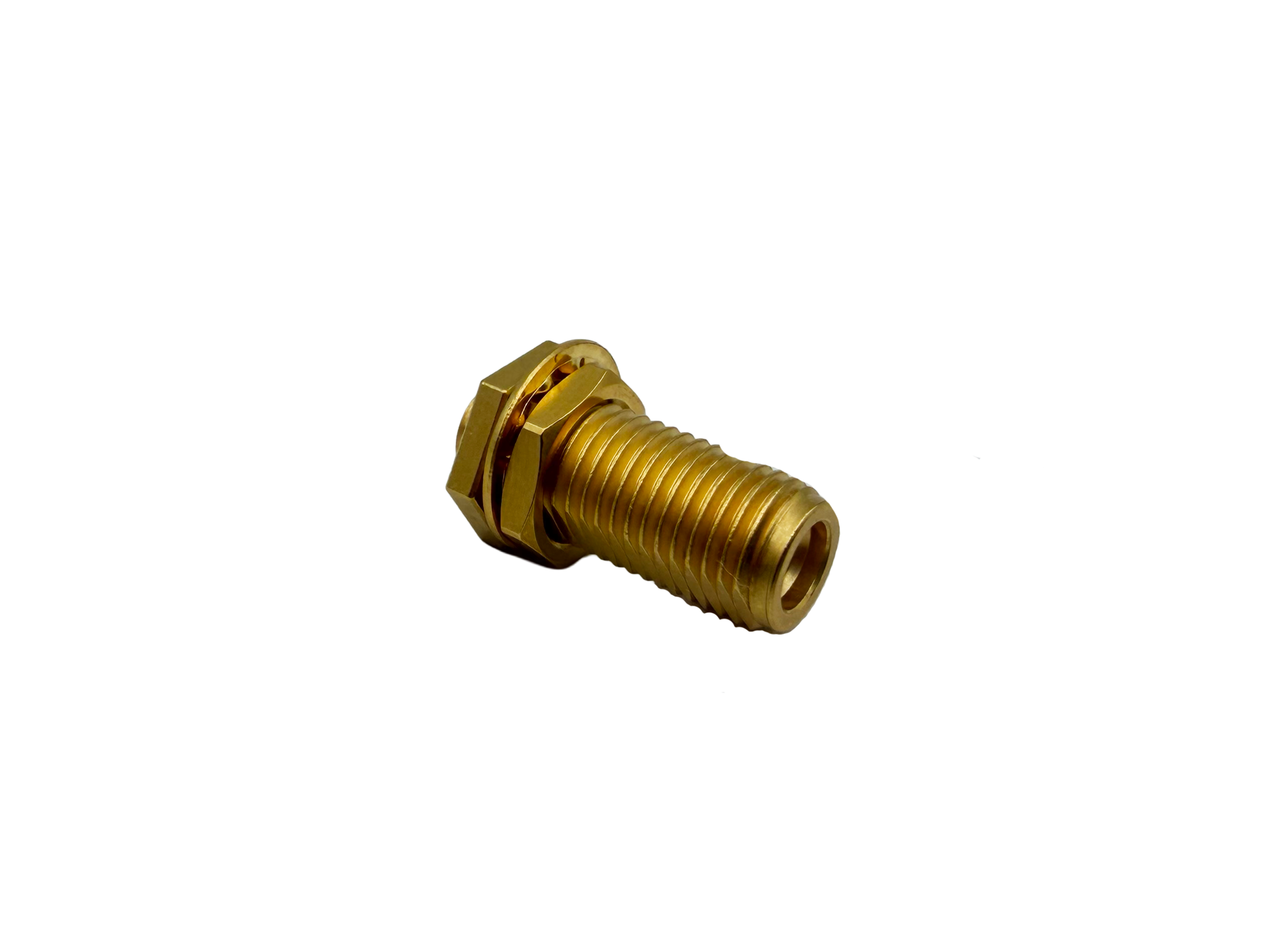

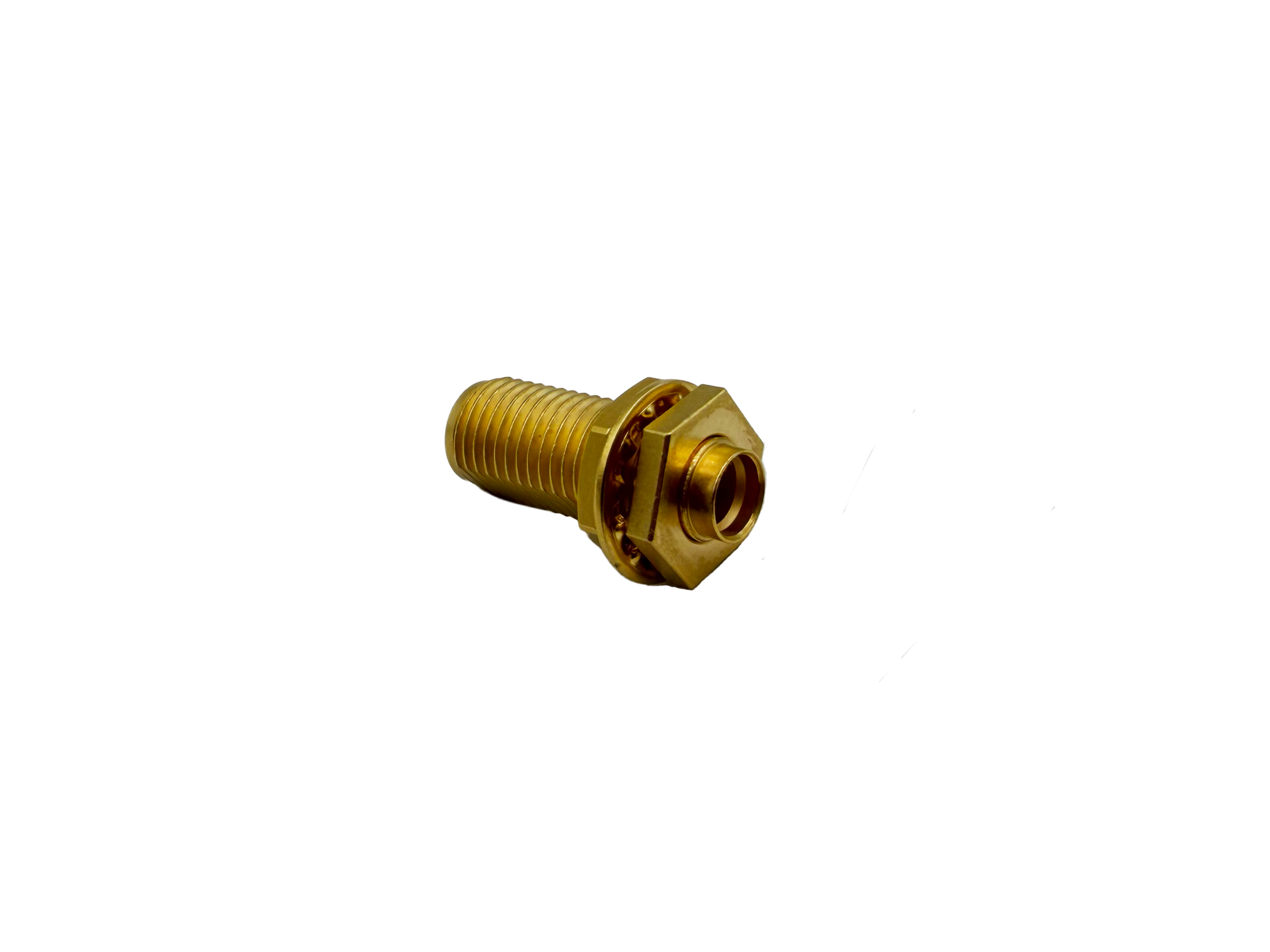

QMC-CRYOCON-BLKMSMP
- Non Magnetic Cryogenic SMA Bulkhead to Male SMP Adapter
- Performance:
- Frequency Range: DC – 26.5 GHz
- Nominal Impedance: 50 Ω
- VSWR: < 1.3 (DC – 26.5 GHz)
- Temperature Range: Operates at 10 mK
- Material:
- Body Material: Phosphor Bronze
- Inner Pin Contact: Beryllium Copper
- 100% Non-Magnetic
- Finish: Gold Plated
