QMC-CRYOCON-BLKF2.92

Features:

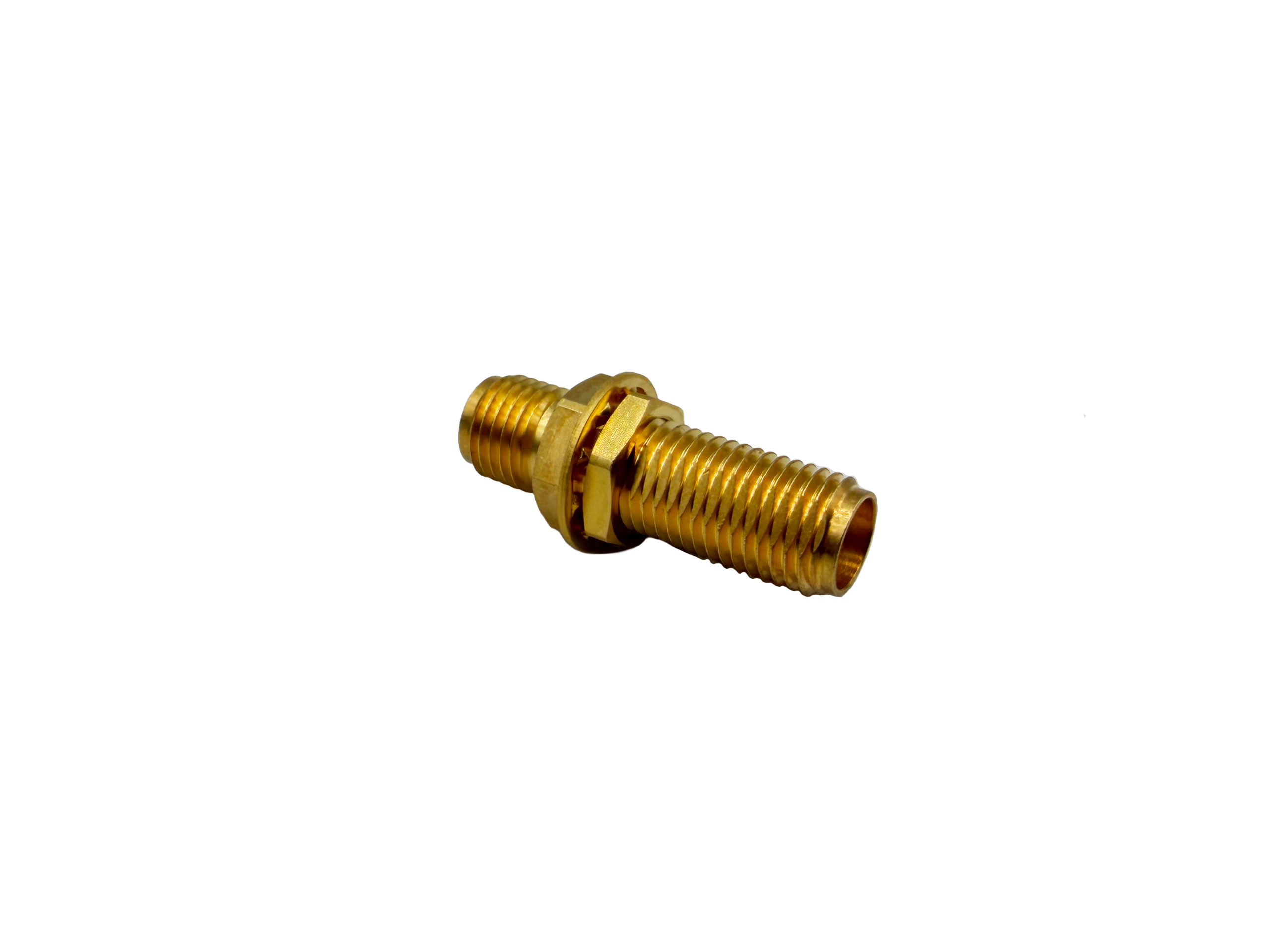

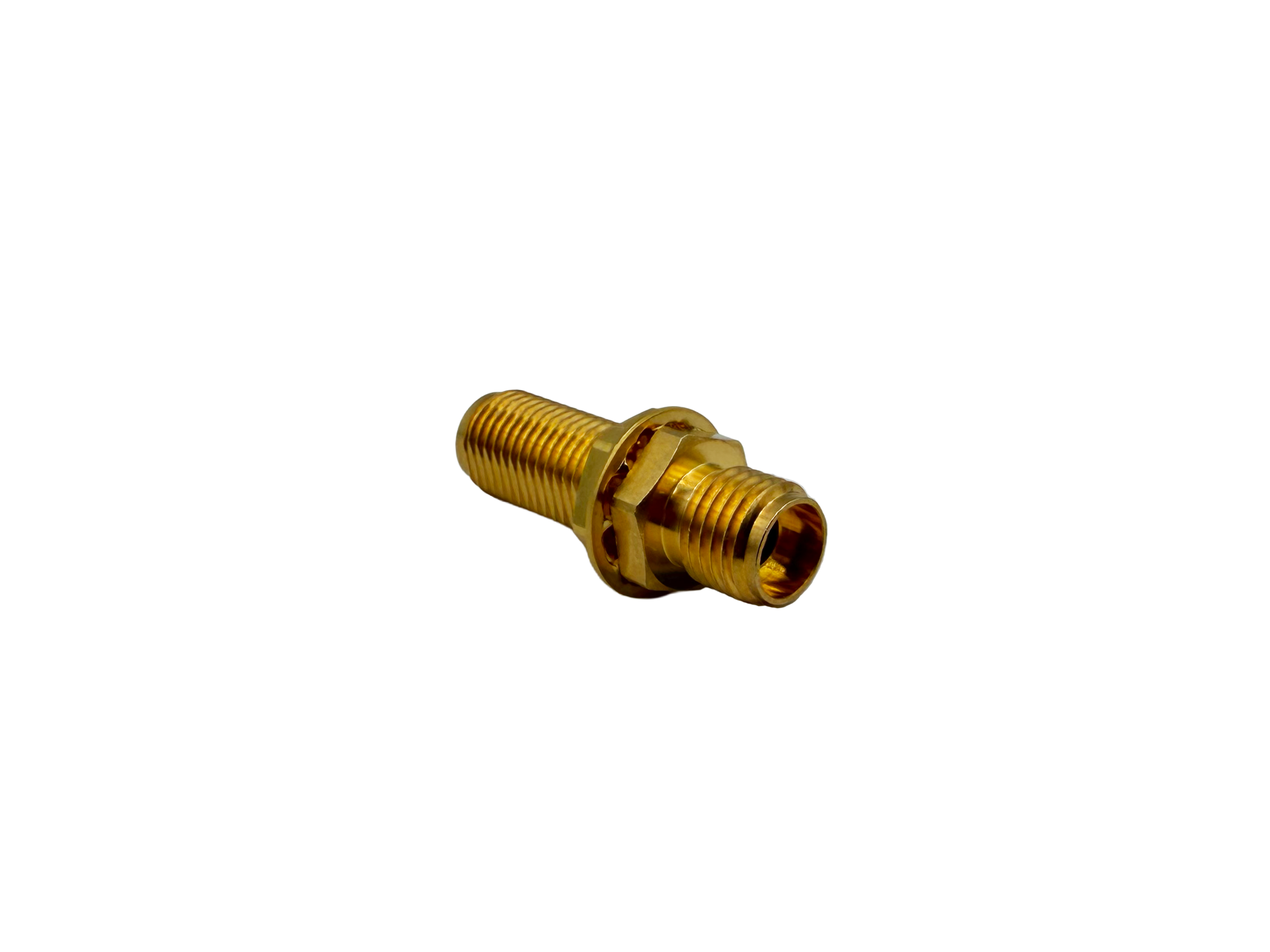

  • Non Magnetic Cryogenic Bulkhead to Female 2.92mm (K) Adapter
  • Threads directly to Cold Plate
  • Frequency Range: DC-40 GHz
  • Nominal Impedance: 50 OHMS
  • VSWR: 1.25:1 Max (DC-40GHz)
  • Body Material: Non-magnetic brass
  • Inner Pin Contact: Beryllium Copper
  • Finish: Gold Plated
