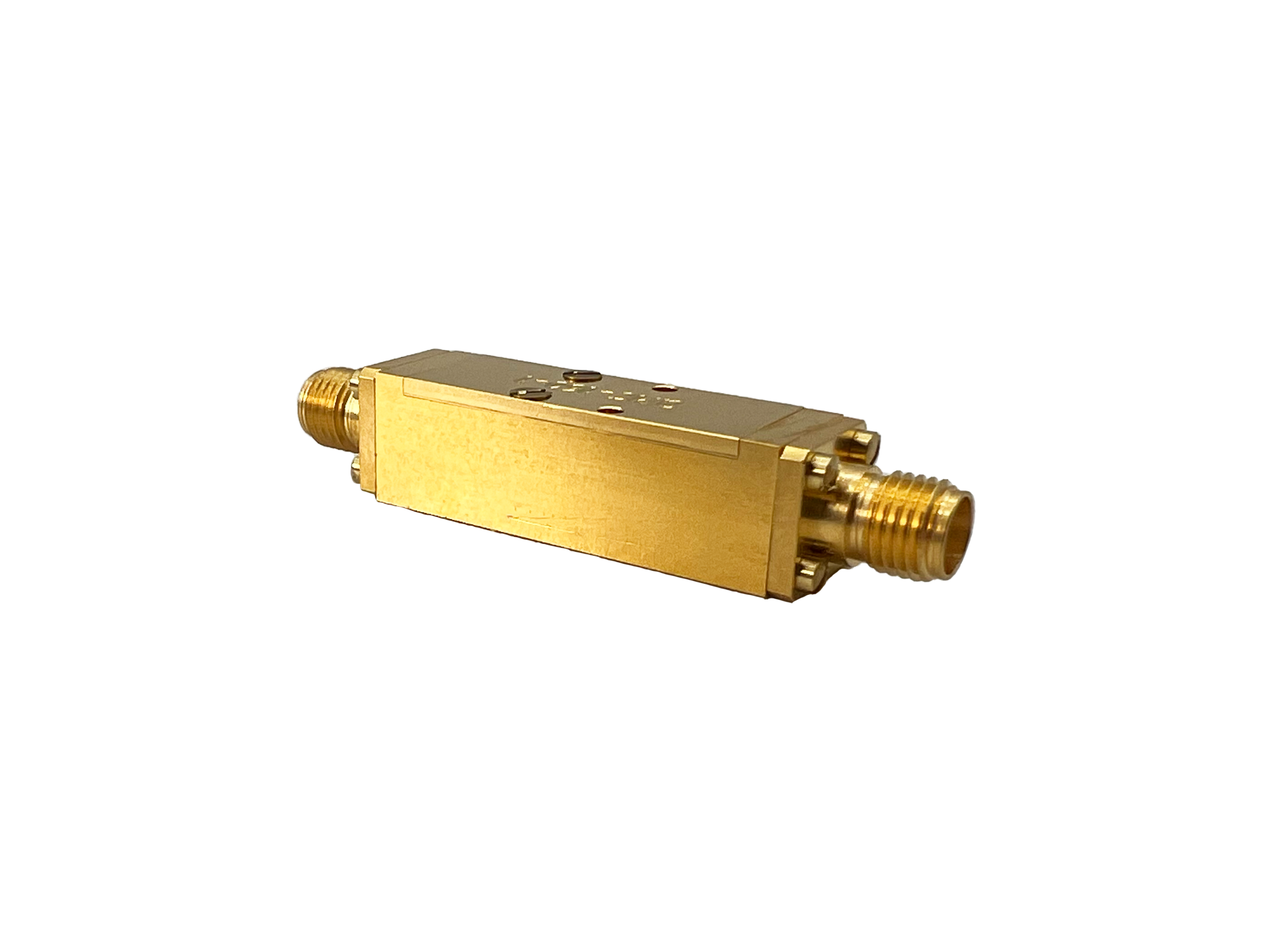

QMC-CLCE-500AFF
High Cut-Off Frequency Infrared Filter
Specifications:
- Insertion loss 1 dB up to 400 MHz
- Cutoff 3 dB @ 500 MHz, > 35 dB at 750 MHz
- Based on integrated LTCC filter with magnetically loaded dielectric absorber Eccosorb CR 124
- Impedance: 50 Ω
- Capable of operation at 10 mK
- Connector 1: SMA Female
- Connector 2: SMA Female
- Housing Gold Plated OFHC Copper
