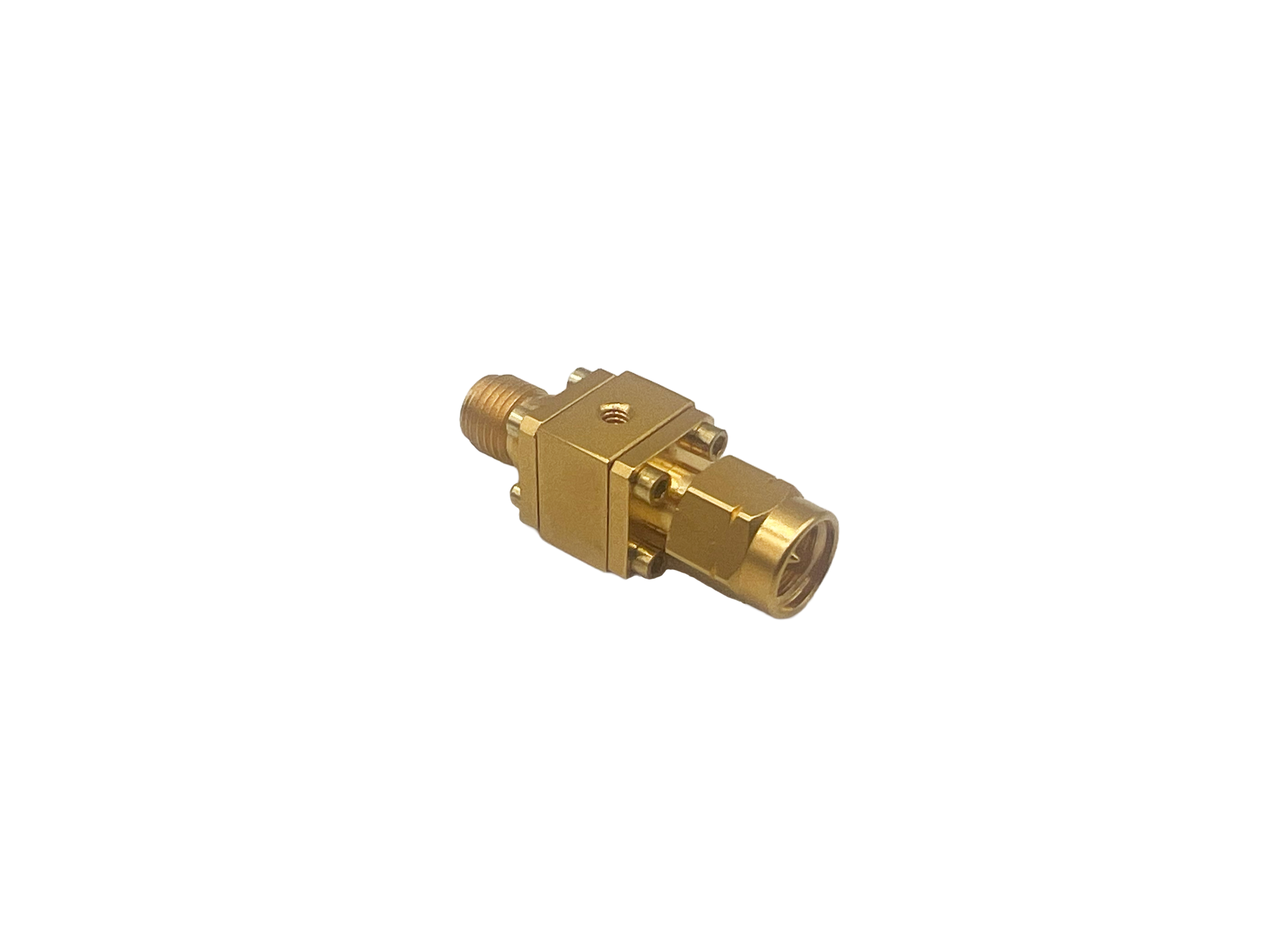

Customizable Precision Thermalized Non-Mag Cryogenic Coax Adapter (SMA Male, Female)
P/N: QMC-CRYOADP-SMA
Specifications:
- SMA Male, Female Adapter for Cryogenic Applications
- Our Connector Types: SMA, SMP, SMPM, SMPS, 2.92mm (K), 2.4mm, 1.85mm, SMA Bulkhead
* All available in male and female - All Connectors are universally swappable
- All Connector types can be purchased separately
- Pass Band: DC to 26.5 GHz
- Insertion Loss: 0.65 dB
- 0.1 @ 8 GHz / 0.15 @ 12 GHz
- Return Loss: 20 dB
- Connectors In/Out: SMA M/F
- Housing Material: Gold Plated OFHC Copper
